Biomass Screw Feeder and Coal Feeding Machine
The new biomass screw feeder and coal feeding machine are key equipment of the boiler feeding system. They achieve even fuel distribution, prevent fuel flashback, control the fuel quantity, prevent incomplete combustion of fuel, and ensure high production efficiency and safe, reliable boiler operation.
▌Product Introduction The new biomass screw feeder and coal feeding machine are key equipment of the boiler feeding system. They achieve even fuel distribution, prevent fuel flashback, control the fuel quantity, prevent incomplete combustion of fuel, and ensure high production efficiency and safe, reliable boiler operation.
▌Biomass Hopper Structure and Principle The lock feeder mainly consists of a storage hopper, impeller, blades, rotating shaft and discharge outlet. When the transmission mechanism drives the impeller to rotate, the lump material falling from the upper hopper enters the impeller compartments through the feed opening and, as the impeller rotates, is conveyed to the discharge outlet. Throughout the process, feeding and discharging are continuous and metered. Because the fit between the impeller and the housing is relatively tight and provides a certain degree of airtightness, a certain pressure can be maintained inside the boiler furnace during discharge.

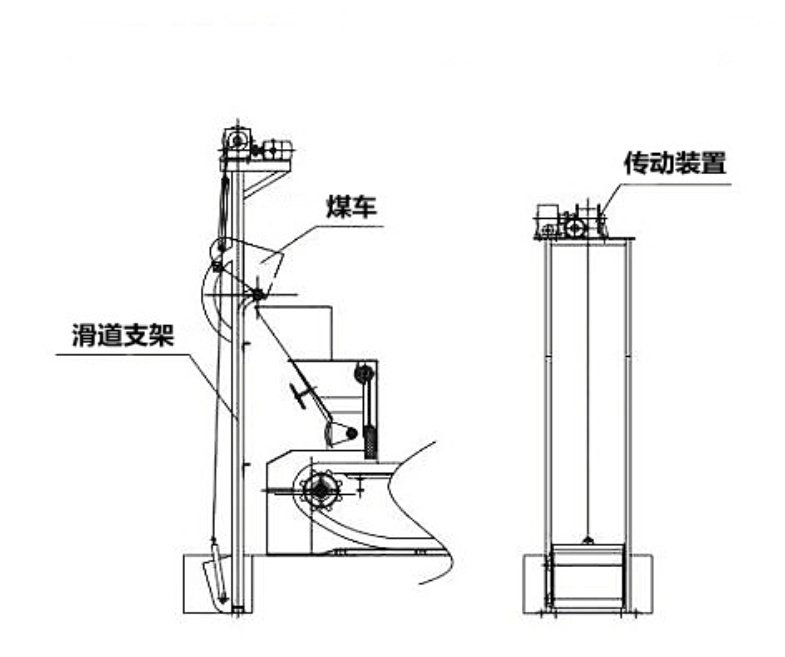

▌Coal Feeding Machine Structure and Parameters
| Model | Applicable boiler capacity (T/H) | Coal hopper capacity (m³) | Rated power (KW) | Operating speed (m/s) |
|---|---|---|---|---|
| QGS4-A | 1–4 | 0.125 | 1.1 | ≥0.125 |
| QGS10-A | 6–10 | 0.2 | 1.1 |
▌Advantages 1. Easy to install and disassemble, robust structure; 2. Safe and reliable, and widely used in the boiler industry.
