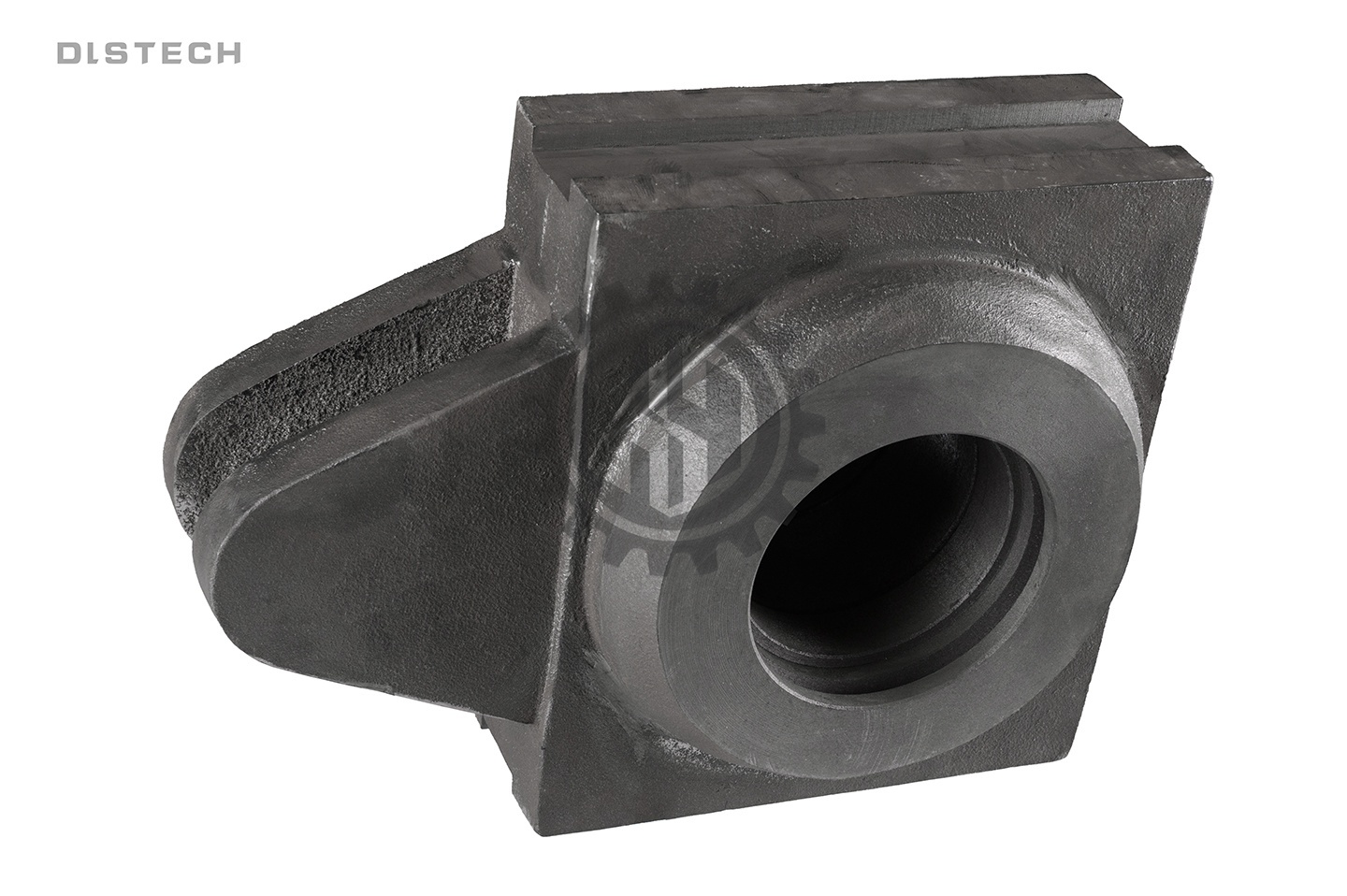

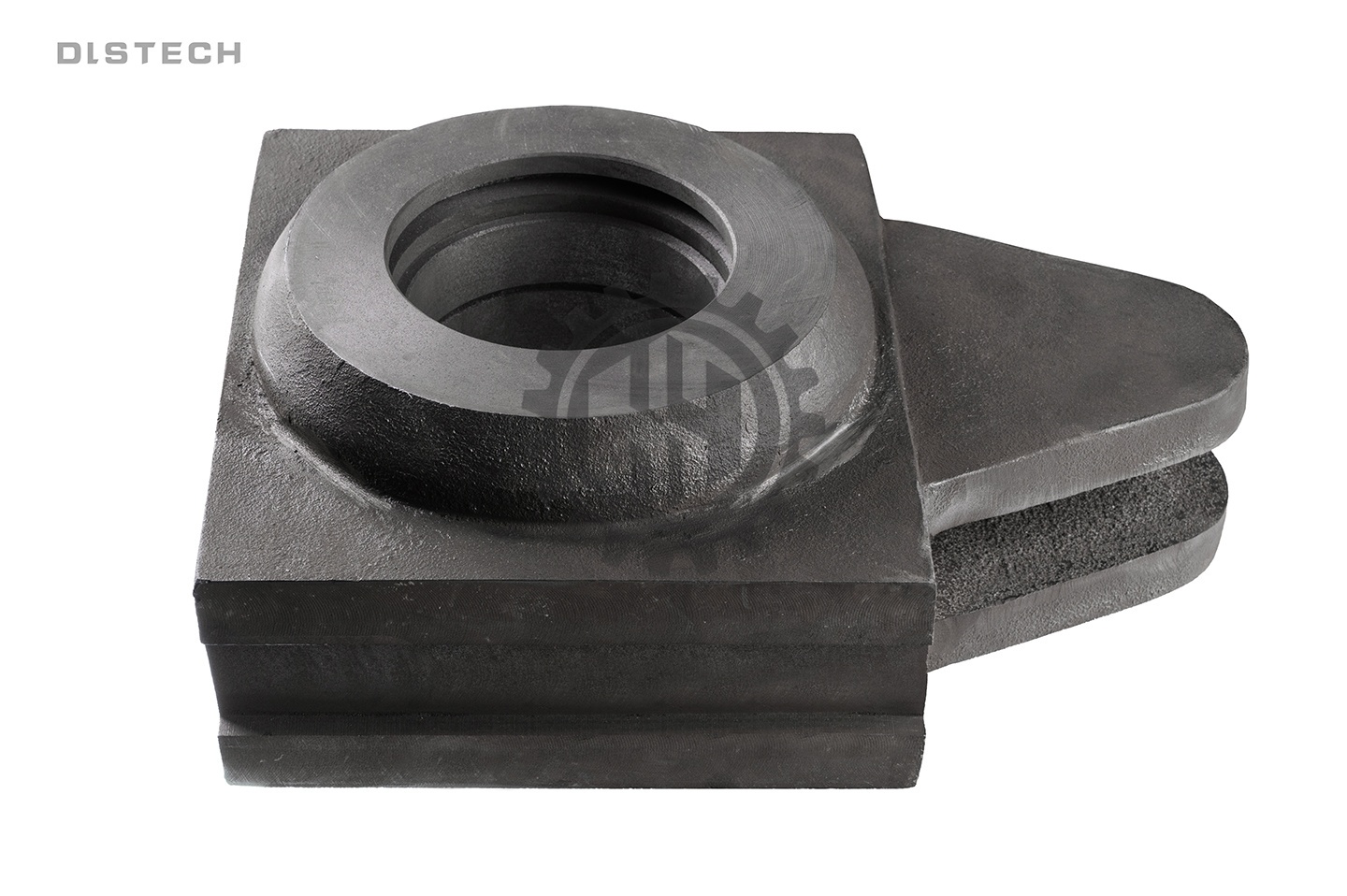

Flake、large chain belt front bearing

The flake / big chain belt front bearing is mounted on the front shaft of flake grates and big chain belt grates and supports the front end of the chain belt. We supply replacement bearings to the original drawings.

Support position on the front shaft

The chain belt of a chain grate runs around the wheel sets at the front and rear ends, and the front bearing sits on both sides of the front shaft, carrying the load of the chain belt at the front. The chain belt of the big flake series is wider, so the matching front wheel, rear wheel and rollers are also larger, and the front bearing belongs to the same wheel set as these parts.

Matching with front and rear wheels and the chain

Parts that can be supplied as a set in the same series include the big flake front wheel, big flake rear wheel, big flake roller, big flake chain, big flake splint pin shaft and big flake side liner. When replacing the front bearing, the wear on the front wheel and chain is normally checked at the same time, to avoid a mismatch between new and old parts. Bearing fitting dimensions are confirmed against the original drawings, and replacements are made to OEM dimensions and tolerances.

Material and standard

The grate spare parts material system of the partner factory covers HT200, HT250, RTSi5, RQTSi5, RTCr16, RTCr, RTCr2, RTCr5 and RTCr2Si4Mo, with the specific grade confirmed according to the requirements of the original part. The product meets technical standard NB/T 47050-2016.

Information needed for a quotation

Please provide the shaft diameter and installation dimensions, the grate series, the original drawing number and the quantity. The partner factory ships, and we can provide selection advice and matching spare parts.
