45t/h Slag Remover
▌Product introduction
Customize various slag remover, buried scraper slag extractors, heavy frame chain slag extractors, screw slag extractors, anchor chain slag extractors.
▌Model parameters
| Model | Lifting angle | Design length (horizontal projection) | Electric motor | Applicable grate tonnage and number | Chain pitch | Width of slag tank |
|---|---|---|---|---|---|---|
| DQGZ-0 | 350 | 4m | Y100L-6 1.5KW | 4-10 t/h | 80 mm | 400 mm |
| 350 | 4.5m | Y100L-6 1.5KW | 15 t/h | 80 mm | 500 mm | |
| 350 | 4..5m | Y100L-6 1.5KW | 20 t/h | 80 mm | 600 mm |

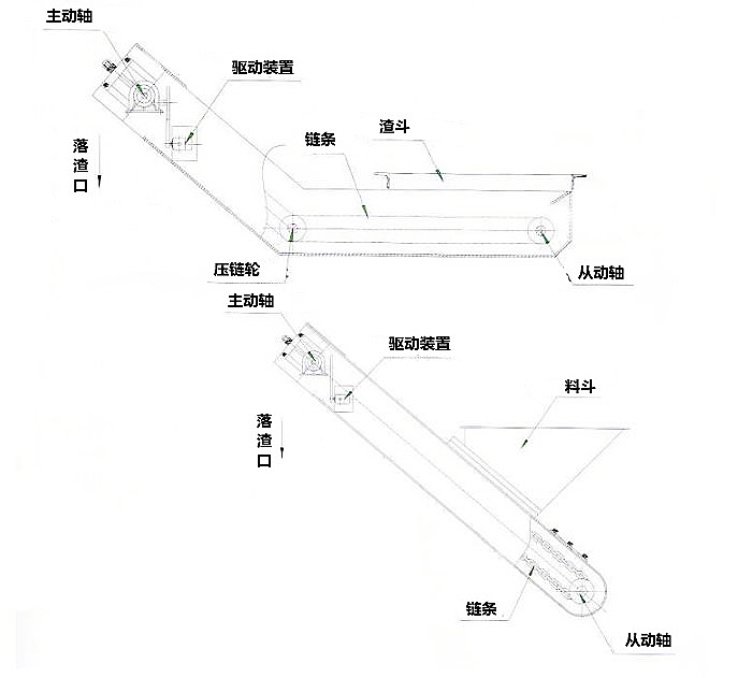

▌Structure and characteristics
(1) The connecting ring is selected for the connection between the scraper and the chain, which is convenient for disassembly and maintenance;
(2) The chain wheel, scraper steel casting and traction chain are mining high-strength circular chain;
(3) Channel steel plate, with cast stone slab under it;
(4) The head is channel fixed.
▌Advantage
1. The chain has high mechanical strength, wear resistance, fatigue resistance and corrosion resistance;
2. Flexible transmission and reliable operation.
